PUMPS

  • LVP Water Ring Vacuum Pump

    LVP Water Ring Vacuum Pump

    Specifications Performance Scope Max volume: Q=2000m3/h Max vacuum: P=33mbar (not equal to max pressure) Titanium pried vacuum pump unit, by the vacuum pump, water separator, heat exchanger, valves, all kinds of instruments and connecting pipe combination to form a complete set of devices, to achieve the purpose of vacuum dichlorination.    LVP type corrosion-resistant liquid ring vacuum pump is used to pump or compress air and other corrosive gas without particles, so a...
  • CH Standard Chemical Process Pump

    CH Standard Chemical Process Pump

    Overview CH pump, a horizontal single-stage single-suction cantilever centrifugal pump, is a high-efficiency pump that integrates advantages of a large number of chemical engineering pumps in accordance with the Technical Specifications for Centrifugal Pumps (Class II) GB/T 5656-2008 (equal to ISO5199: 2002). It comprises four models as follows in order to meet the operation requirements: CH model (closed impeller and mechanical sealing) CHO model (semi-open impeller and mecha...
  • Zirconium Pump

    Zirconium Pump

    Specifications Performance Scope Flow: Q=5~2500m3/h Head: H≤300m Operating pressure: P=1.6~2.5~5~10Mpa Operating temperature: T=-80~+450℃ Design according to API610 11th standard for horizontal single-stage, single-suction, radial sectioning, Center-line -supported-installation, cantilever centrifugal pump. Remote temperature and vibration sensors installed at the bearing can monitor pump operation remotely. Application: Acetic acid, formic acid, MMA and other industries.
  • ZAZE Petro-chemical Process Pump-1

    ZAZE Petro-chemical Process Pump-1

    Overview We, in accordance with the design and manufacture standard of API61011th Centrifugal Pump for Petroleum, Petrochemical and Natural Gas Sectors, develop ZA/ZE series petro-chemical process pumps. Main pump body, according to the form of support, is divided into two structures: OH1 and OH2, and the impeller are of open and closed structures. Of which, ZA belong to OH1, closed impeller; and ZAO is of OH1, an open one; ZE is of OH2, with a closed one, and ZE0 is of OH2, w...
  • ZAO Solid Particle Delivery Pump

    ZAO Solid Particle Delivery Pump

    Specifications Performance Scope Flow: Q=5~2500m3/h Head: H≤300m Operating pressure: P≤5Mpa Operating temperature: T=-80~+450℃ The pump transport containing solid particles or impurities containing suspension medium, choose wear-resistant material or corrosion resistant material. It is applicable to oil refining, coal chemical industry, petrochemical industry, salt chemical industry, environmental protection, pulp and paper, seawater desalination, water treatment, metallurgy ...
  • VSS Type Vertical Self-Priming Pump

    VSS Type Vertical Self-Priming Pump

    Specifications Performance Scope Flow: Q=0.5~15m3/h Head: H=10~125m Self-priming Height: h≤6m Operating pressure: P≤5Mpa Operating temperature: T=-80~+450℃ VSS series pump is vertical, single-stage, single- suction cantilever centrifugal self-priming pump. This series of pumps can transport low temperature liquid; Neutral or corrosive liquids; Clean or liquid containing trace solids. Suitable for chemical and petrochemical, oil refinery, paper mill and pulp industry, sugar ind...
  • THA Axial Flow Pump

    THA Axial Flow Pump

    Specifications Performance Scope Flow: Q≤25000m3/h Head: H≤7m Pipe diameter: DN=250-1500mm Operating pressure: P≤0.6Mpa Operating temperature: T=-30~+250℃ KSP series chemical mixed – flow pump is horizontal radial division, cantilever mixed – flow pump, pump body by the foot support. With safe and reliable, stable operation, easy maintenance and other characteristics.  It is mainly conveying large flow, low head, uniform or contain certain particles of chemical neutral o...
  • SP Small Flow Pump

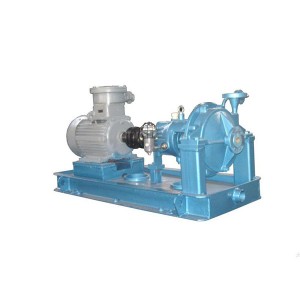

    SP Small Flow Pump

    Specifications Performance Scope Flow: Q=0.5~15m3/h Head: H=10~125m Operating pressure: P≤5Mpa Operating temperature: T=-80~+450℃ SP series small flow, high head single-stage cantilever centrifugal pump API610 11th standard, with high efficiency and energy saving, reliable and stable operation, high temperature and high-pressure resistance. Suitable for conveying a variety of low or high temperature,neutral or corrosive, clean or containing solid particles, toxic, flammable a...
  • KY Long Shaft Submerged Pump

    KY Long Shaft Submerged Pump

    Specifications Performance Scope Flow: Q=2~300m3/h Head: H=5~150m Operating pressure: P≤1.6Mpa Operating temperature: T=-20~+125℃ KY long shaft submerged pump, structure:VS4, pump shaft system flexible shaft. It is mainly used for conveying non-granular medium similar to water.The subaqueous penetration depth can be greater than 2m. |t is often used in coal chemical industry, salt chemical industry,water treatment, fine chemical industry and other industries to pump clean ...
  • KSP Chemical Mixed Flow Pump

    KSP Chemical Mixed Flow Pump

    Specifications Performance Scope Flow: Q=200~7000m3/h Head: H=3~30m Operating pressure: P≤0.6Mpa Operating temperature: T=-30~+250℃ KSP series chemical mixed – flow pump is horizontal radial division, cantilever mixed – flow pump, pump body by the foot support. With safe and reliable, stable operation, easy maintenance and other characteristics. It is mainly conveying large flow, low head, uniform or contain certain particles of chemical neutral or corrosive liquid...
  • KMD Self-balancing Multi-stage Pump

    KMD Self-balancing Multi-stage Pump

    Specifications Performance Scope Flow: Q=5~750m3/h Head: H≤800m Operating temperature: T≤230℃ The high-efficiency multi-stage centrifugal pump developed according to AP1610 standard, BB4 structure, the impeller adopts symmetrical arrangement, which basically eliminating axial force, safe, stable and reliable operation, low noise, less vulnerable parts, low operation cost and high pump efficiency. Applicable to coal chemical industry, salt chemical industry, petrochemical indu...
  • KIG Vertical Pipe Pump

    KIG Vertical Pipe Pump

    Specifications Performance Scope Flow: Q≤600m3/h Head: H≤150m Operating temperature: T≤+120℃ KIG(OH5) type pipeline pump impeller installed on the motor extension shaft, mainly for civil use, with compact structure, high efficiency and energy saving, low voice, easy installation and maintenance, reliable performance and other advantages. It is mainly used for conveying water and other liquids with physical and chemical properties similar to water, suitable for industrial and u...
