WTX type flexible rubber bent
Technical Conditions Type Item WTX-Ⅰ WTX-Ⅱ WTX-Ⅲ Working Pressure MPa (Kg f/cm2) 1.0 (10) 1.6 (16) 2.5 (25) Explosion Pressure MPa (Kg f/cm2) 2.0 (20) 3.2 (32) 4.5 (45) Vacuum KPa (mmHg) 53.3 (400) 86.7 (650) 100 (750) Applicable Temperature °C -15~115, (for special conditions) it can be -30~250 Applicable Medium Air, compressed air, water, sea water, hot water, oil, acid and alkali etc. Main joint dimension Nominal diameter Len... -
Rubber (Fabric) Ducting Joints (Non-metallic Compensator)
Product features • It is reasonably structured with good flexibility and large range of expansion and contraction of compensating pipe, which has a small counterforce on the pipe support. • With vibration absorption and noise reduction, heat and dust insulation, it is friendly to the environment and helpful for simplifying the support structure. • It can deflect displacement and prevent the damage cause by the sinking of connected supporting frame or equipment foundation. It c... -

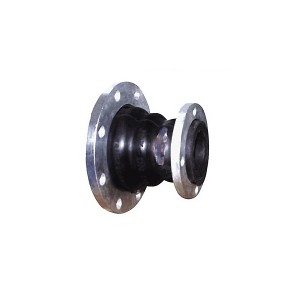

JDX type reducing rubber joint (reducer)
Technical Conditions Type Item JDX (DN50~300) JDX (DN350~600) Remarks Working Pressure MPa (Kg f/cm2) 1.0 (10) 0.6 (6) A. Like media oil and acid alkali materials. B. Special requirements for working temperature C. Write and provide drawing sample for order D. Make notes when ordering Explosion Pressure MPa (Kg f/cm2) 2.0 (20) 1.5 (15) Vacuum KPa (mmHg) 86.7 (650) 53.3 (400) Applicable Temperature °C -15~115, (for special conditions) it can -30~250 Appl... -
JGD-D1 type rubber cutting vibration isolator
Product introduction D1 type rubber cutting vibration isolator is composed of internal and external steel bushing and medial synthetic rubber, after vulcanization, it appears a core in the middle and the rubber part is stressed, and there are large deformation range and low free -running frequency. The working temperature ranges -5C~+50C, as the temperature changes, the rigidity changes; damping ratio is C/CC>0.07. It has good vibration isolating effect for the active vibra... -
-
JGD-B1 type fan coil rubber joint
Product introduction This product is composed of inner rubber, rubber hose made up multi-layer coating cord fabric and outer rubber and metallic active joint with advantage features of high pressure resistance, good flexibility, large deflection displacement, ageing resistance and good vibration absorption, it is applied to the inlet and outlet pipe connection of the variable fan-coil unit used in air conditioner of hotels. Materials No Name 1 Inner glue ... -
JDG-B Type Screwed Connection Rubber Joint
Materials No Name Material 1 Outer/inner rubber NR, NBR, EPDM 2 Key frame Nylon cord fabric 3 Pressurized ring Steel wire 4 Thread woggle joint Forged cast iron Technical Conditions Working pressure 1.6MPa (16Kgf/cm2) Angular deflection (a1+a2) 45° Explosion pressure 4.8MPa (48Kgf/cm2) Vacuum 53.3KPa (400mmHg) Applicable Temperature ℃ -15℃~115℃, (for special conditions) it can be -30℃~250℃ Applicable media Water, sea water, hot water, air... -
Flexible Rubber Joint
Performance characteristics Flexible rubber joint, which is also called vibration absorber, pipe vibration absorber, flexible joint and hose joint and so on, is pipe joint with high flexibility, high air tightness and good medium-resistance and weather resistance. Its performance characteristics are: 1. It is small in size, light in weight, good in flexibility, convenient for installation and maintenance. 2. During installation, transverse, axial and angular displacement will ...
